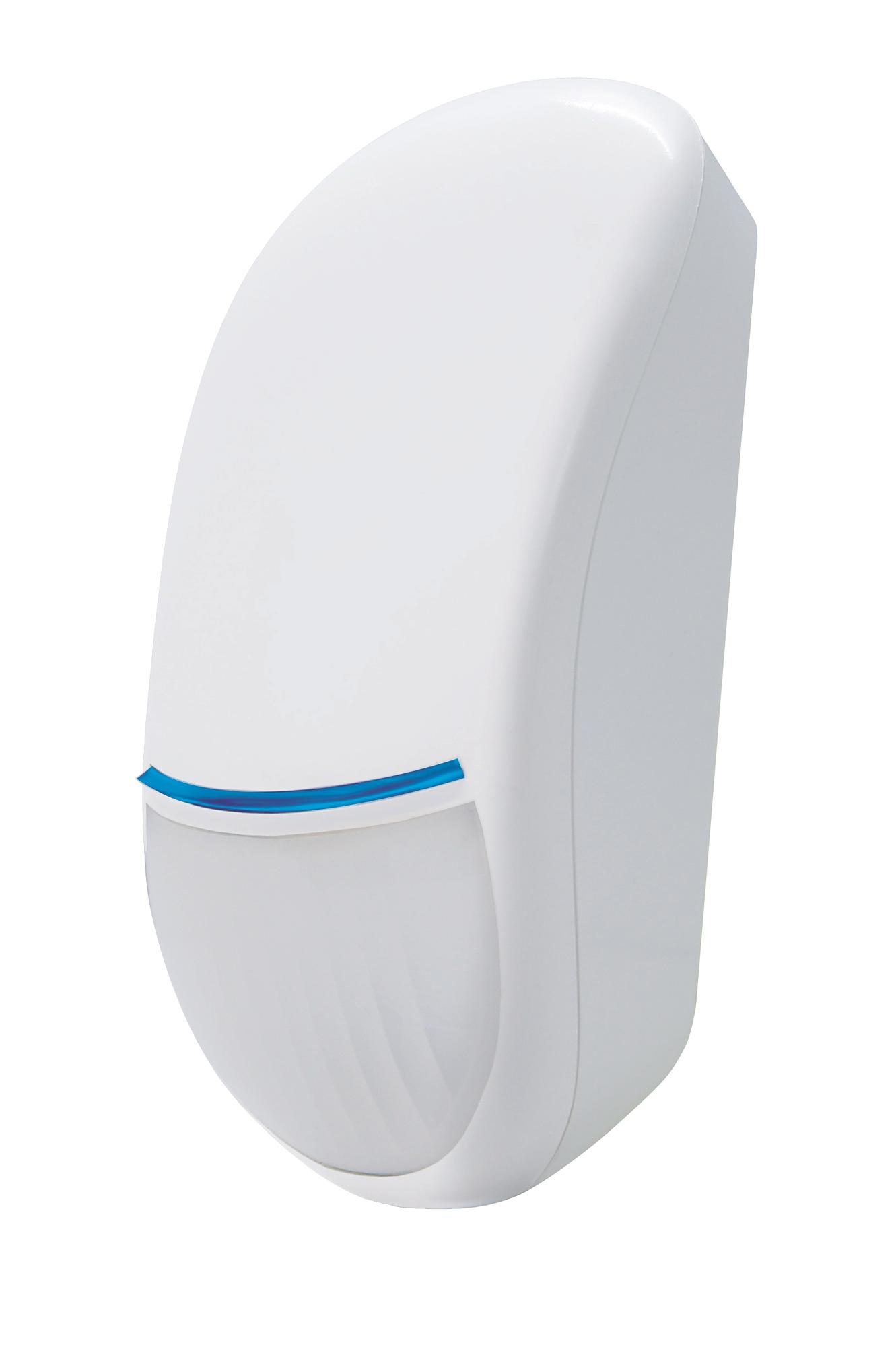

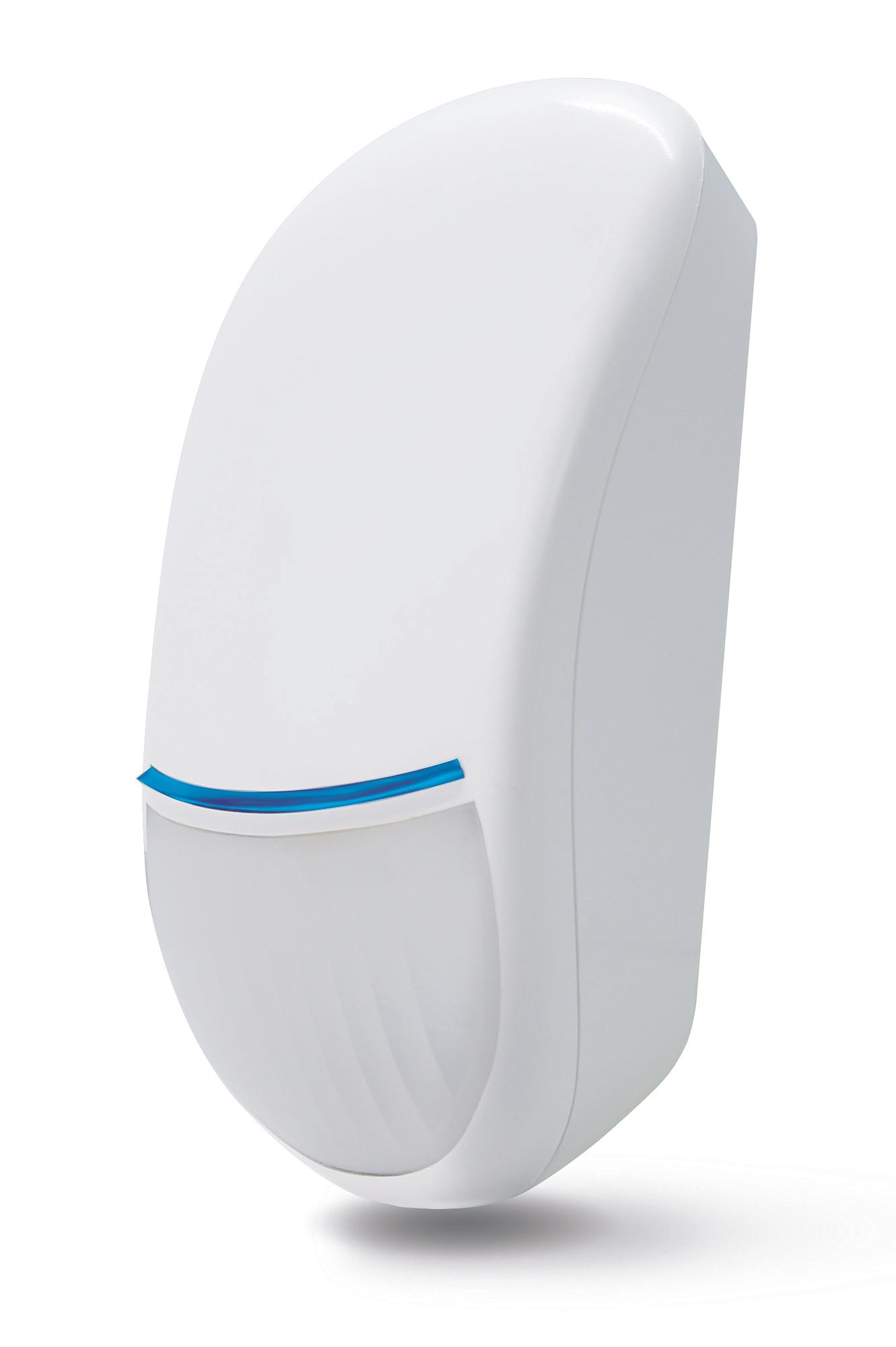

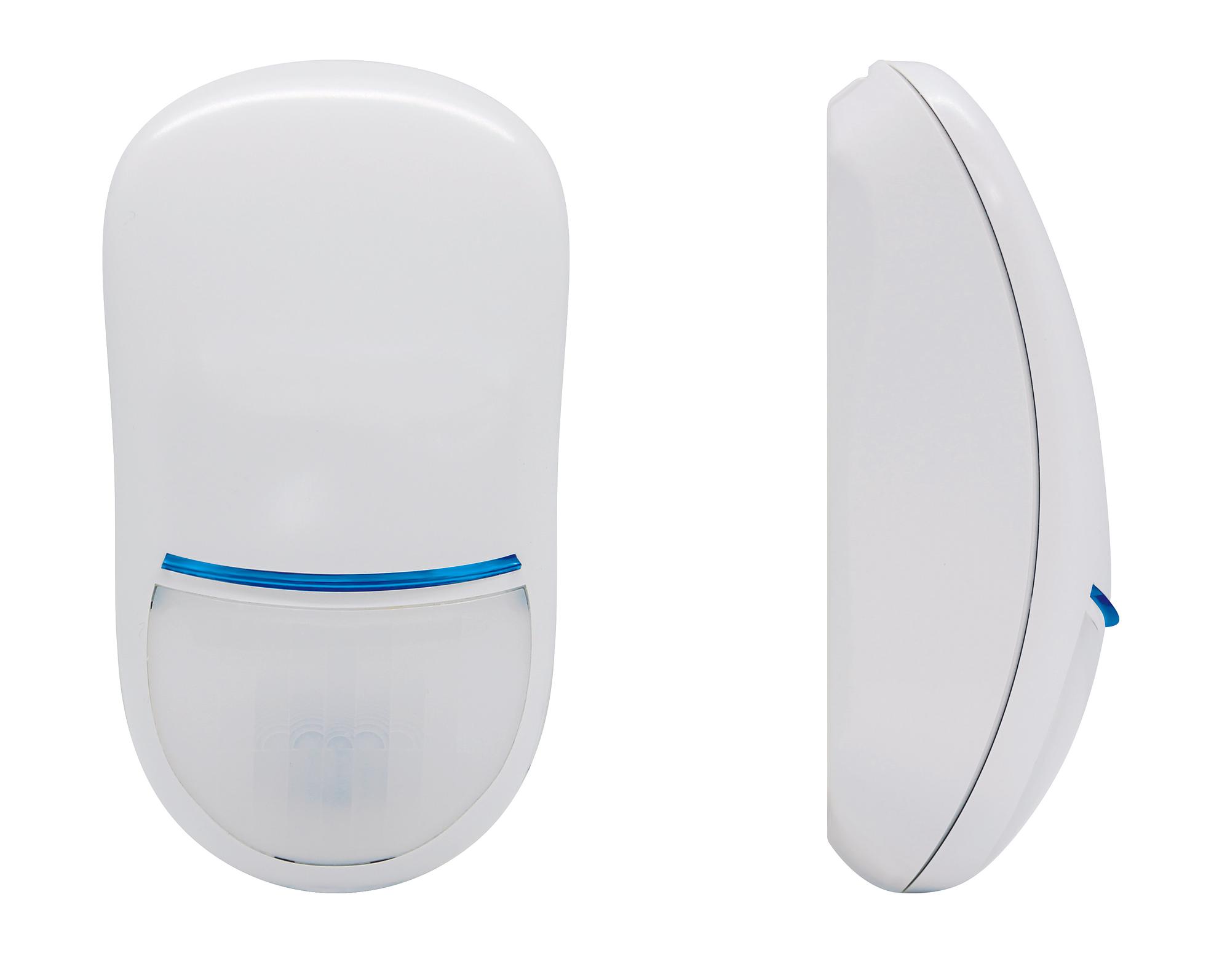

Value Line PIR/MW, 15m, PI, 10.5GHz

If you are a registered Vanderbilt partner, please log in to see pricing.
Not a Vanderbilt customer? No problem, you can register here.
Need a Vanderbilt product installer? click here

Article number: VL-DT15PI-F1
EAN/UPC-Code: 7330082007462

Close menu

Product information "Value Line PIR/MW, 15m, PI, 10.5GHz"

This Dual Technology motion detector, using a PIR and a microwave radar, is ideal for both residential and low commercial applications. It uses a digital pyro element in combination with a microwave radar, eliminating the need for signal conversion, and provides an accurate detection of intrusions. Featuring a lens with Fresnel Technologies it ensures quality and efficiency. The detector is also pet-immune within a 15-meter range and 100-degree angle.

Gross weight (KG)	0.108
Purchase unit	PCE
EAN/UPC-Code:	7330082007462
Minimum order	1
Statistical code	85311030
Material code	VL-DT15PI-F1
Country of origin	IT
Net weight	0.082
ECCN	EAR99

This link will redirect you to the Value added resources section of our website where you can find information on product compatibilities, product lifecycle news, videos, marketing support materials, case studies, approvals and much more.

Close menu

Approval:	EN grade 2 (pending)
EOL resistor:	4K7,4K7 or user selectable Dual EOL values
Weight:	108g (including packaging)
Operation temperature:	-10°C to +55°C
LED Indicators:	green, yellow, blue
Current consumption:	max. 44mA
Relative humidity:	< 93% without condensation
Power supply:	9-15 VDC
Pet immunity:	Yes, up to 15kg
Optical system:	LODIFF Fresnel Lens Technology
Mounting:	2m to 2.2m
Housing protection:	IP 3X
Horizontal angle of view:	100°
Dimensions (W x H x D):	114 x 63 x 40mm
Detection characteristics / range:	7m or 15m
Housing material:	ABS
Tamper switch:	Front and Back Tampers
