ARC-ENC MF Enrollment Reader +Cards +SW

Log venligst ind for at se priser.
Ikke en Vanderbilt kunde? Intet problem,du kan registrere dig her.
Har du brug for et Vanderbilt-produktinstallatør ? klik her
  • N54504-F112-A100
  • 7330082004386
Produkt information "ARC-ENC MF Enrollment Reader +Cards +SW"

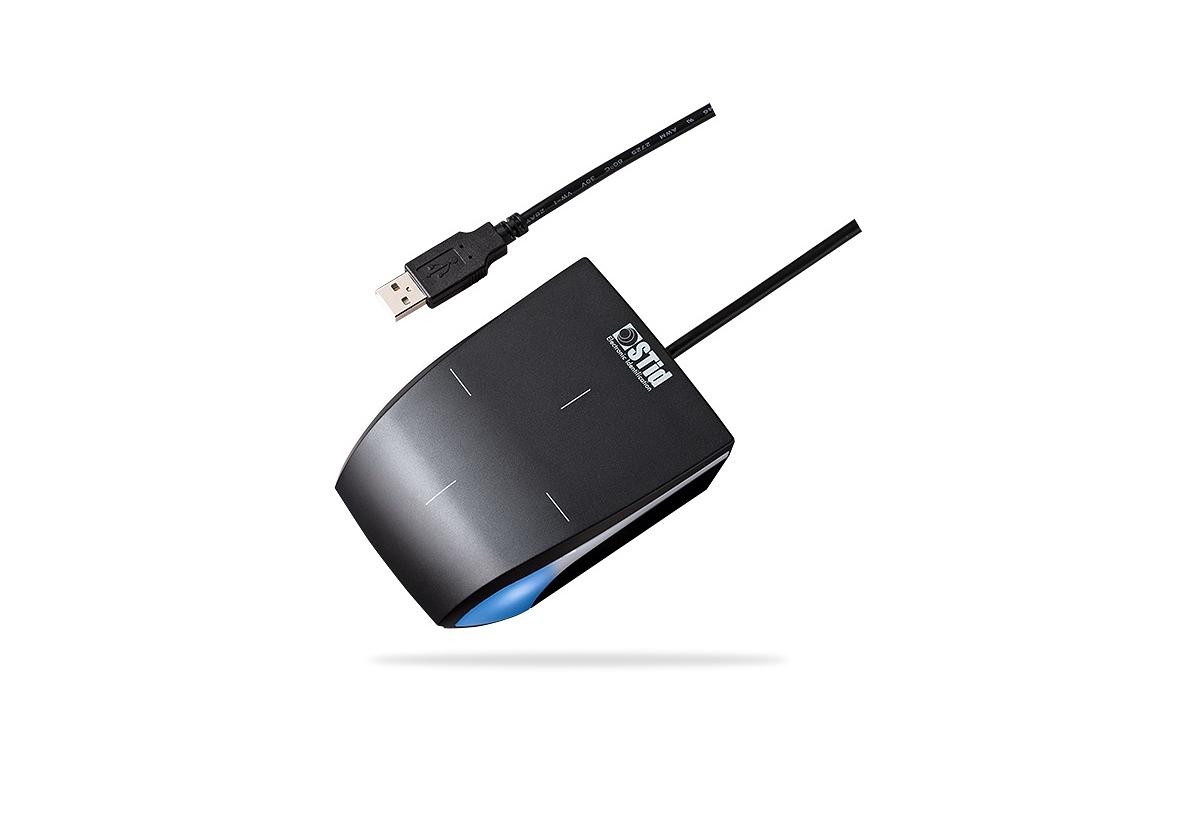

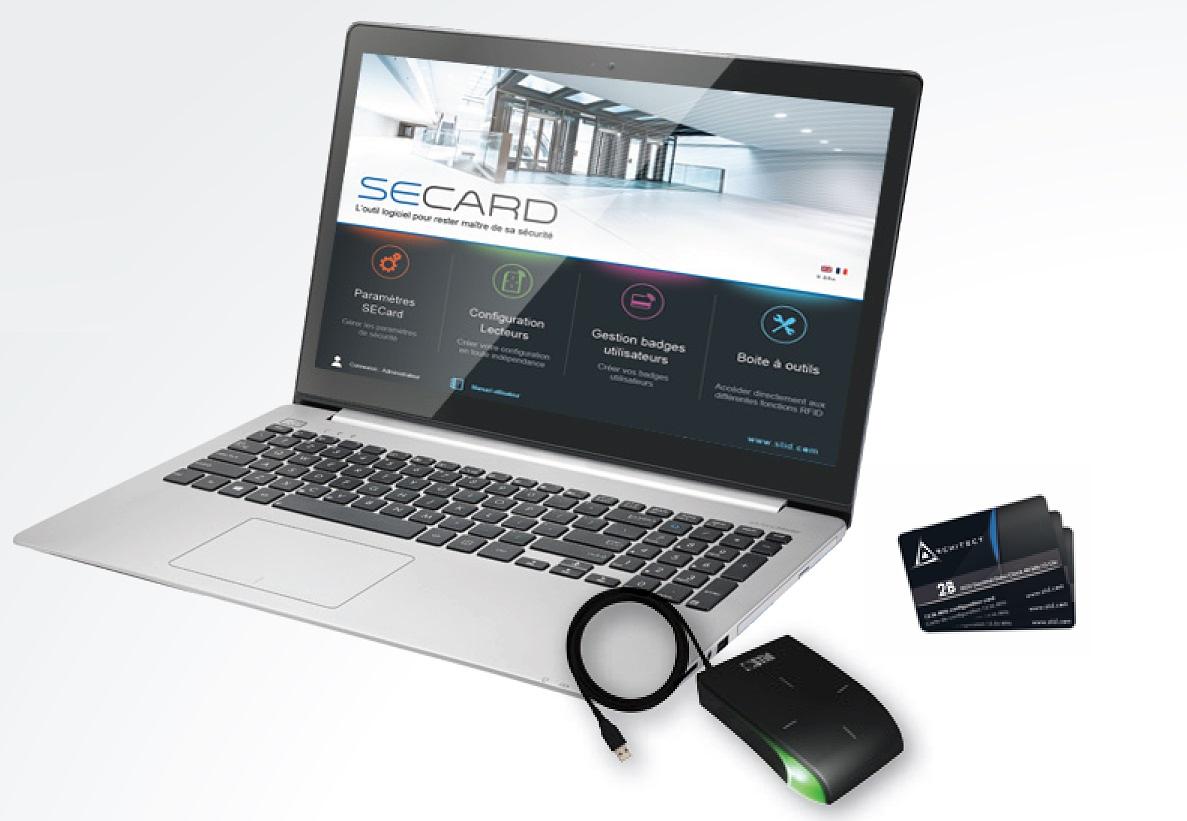

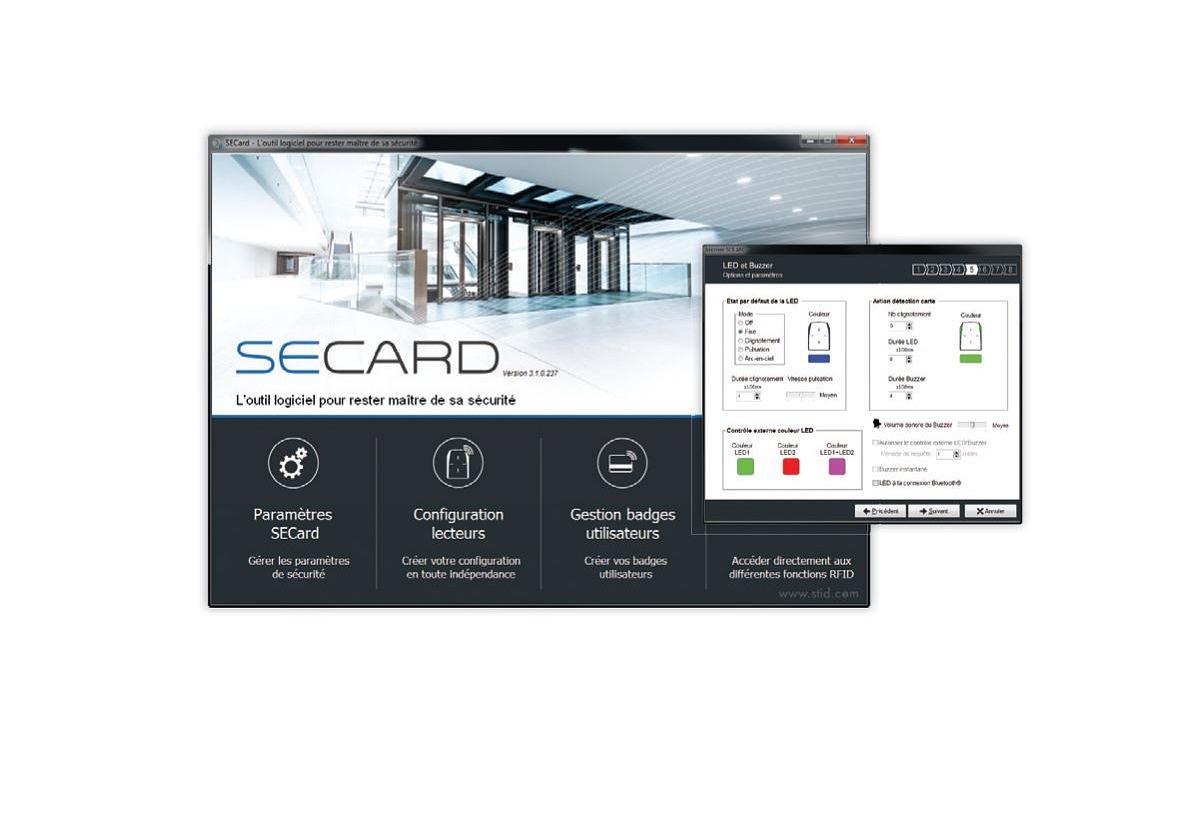

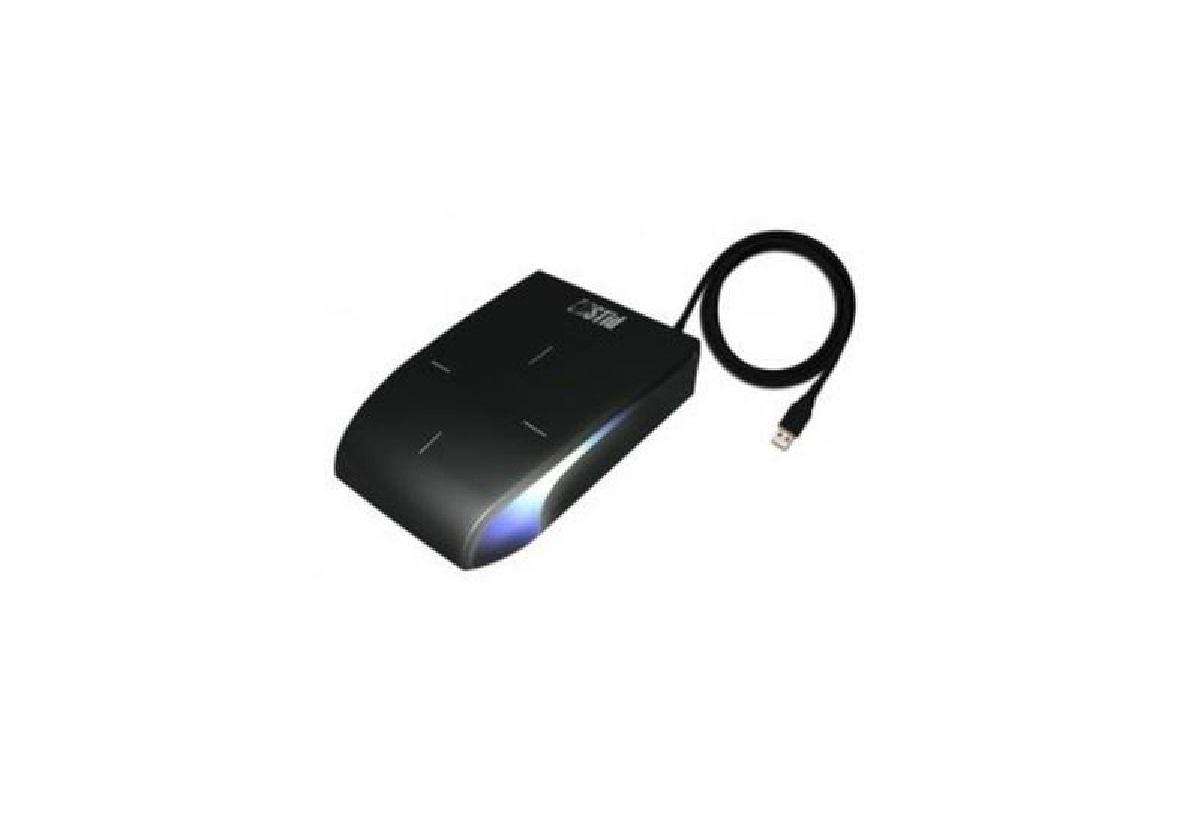

The complete configuration kit ARC-ENC makes it easy to securely program user cards, create reader configurations and manage security keys. It consists of: - 13.56MHz MIFARE® encoder - SECard software (USB stick) - 2x MIFARE® Classic 1K cards - 4x MIFARE® DESFire® EV1 4K cards The SECard software lets users, installers and integrators easily: - securely program user RFID and virtual cards, - create physical or virtual master cards for programming readers, - manage keys and security configurations. The encoder is compliant with ISO14443 types A & B and ISO18092 standards. It supports simultaneously MIFARE Ultralight® & Ultralight® C, Classic & Classic EV1 (1kb, 4kb), MIFARE Plus® (S/X, 2kb /4kb), DESFire® EV1 & EV2 cards - as well as special products like CPS3 cards (national healthcare professional ID card - IAS/ECC protocol), NFC, Moneo, iCLASS® and PicoPass® cards. With this multiple standard reading capacity, the reader is ready to answer easily cases of building extension, security evolution or migration.
Bruttovægt (KG) 0.325
Købs Enhed PCE
EAN/UPC-Kode: 7330082004386
mindste bestilling 1
ECCN N
Oprindelsesland PT
Statistisk kode 85437090
Materialekode N54504-F112-A100
Nettovægt 0.300
Operating temperature: - 20°C à + 70°C
Supply voltage: USB interface (USB cable 1.5m)
Housing protection (EN 60529): Waterproof excluding connectors Reinforced vandal proof structure IK10
Air humidity (EN 60721): 0 - 95%
Buzzer: Indicateur sonore interne
LED Indicators: 2 LEDs RVB- 360 couleurs
Dimensions (L x W x H): 107mm x 80mm x 26mm
Environment: Utilisation intérieure seulement
Card compatibility: MIFARE Ultralight® & Ultralight® C, MIFARE® Classic & Classic EV1, MIFARE Plus®,DESFire® EV1 & EV2, NFC, SMART MX, CPS3, Moneo, iCLASS® & PicoPass®
Housing protection: Etanche, à l'exclusion des connecteurs Protection renforcée au vandalisme IK10
Housing material: ABS-PC-UL-V0
Power supply: Interface USB (câble USB de 1.5m)
Indicators: 2 LEDs RGB - 360 colors
Card read distance: Jusqu'à 8cm avec une carte MIFARE® Classic Jusqu'à 6cm with une carte MIFARE Plus® /DESFire® EV1
Approval: CE, FCC, UL
Card technology: MIFARE
Dimensions (W x H x D): 80mm x 107mm x 26mm
